Leica Pegasus:Two

Mobile Mapping Solution

Asset Management Pavement Assessment


Capturing assets for budget planning and maintenance scheduling, measuring road quality for budget reporting, and maintaining outdoor advertising compliance happens easily with semi-automatic data extraction into a standard GIS interface.

Survey & Design

With the appropriate control points, design and surveying for road construction is enabled at vehicle speeds. Coordinate conversion to local datums is standard and easy even with large datasets.


Rail Georeferencing

Enable quick and precise georeferenced cartography of railways, non-intrusive and safe, enables preventive maintenance while reducing surveying time and balancing staffing requirements.



Leica Pegasus:Two Product Specifications

Camera Sensor

Number of cameras           8
CCD size                           2000 x 2000
Pixel size                           5.5 x 5.5 microns
Maximum frame rate        8 fps x camera, equal to 256 M pixels x second (collected, compressed,                                                  stored)
Lens                                   8.0mm focal, ruggedised; 2.7mm focal, top
Coverage                           360° x 270° excluding rear down facing camera

Control Unit

Multi-core industrial PC, low power consumption, 1TB SSD hard disk with USB3 interface. USB, Ethernet, and wireless connections available through the battery system. Service support available through remote interface.

Battery System Performance

Typical operating time                    9 hrs, profiler version; 13 hrs, scanner version
VAC input voltage                         100 min to 240 max VAC autoranging
AC input power (charge cycle)      350W Max
AC input frequency                        50/60 Hz
Time to full charge                         11.0 max h starting 0%
DC output                                       21–29 volts
Watt/Amp hours                             2685 Watts hours /104 Amp hours

GNSS/IMU/SPAN Sensor

Includes triple band – L-Band, SBAS, and QZSS for GPS, GLONASS, Galileo, and BeiDou constellations, single and dual antenna support, wheel sensor input, tactical grade – no ITAR restrictions, low noise FOG IMU.

Frequency 200 Hz
MTBF 35,000 hour
Gyro bias in-run stability (±deg/hr)                           0.75
Gyro bias offset (deg/hr)                                            0.75
Gyro angular rand. walk (deg/√hr)                             0.1
Gyro scale factor (ppm)                                              300
Gyro range (±deg/s)                                                    450
Accelerometer bias (mg)                                             1
Accelerometer scale factor (ppm)                               300
Accelerometer range (±g)                                           5
Position accuracy after 10 sec of outage duration      0.020 m RMS horizontal, 0.020 m RMS vertical,                                                                                     0.008 degrees RMS pitch/roll, 0.013 degrees                                                                                            RMS heading.

Optional Accessories

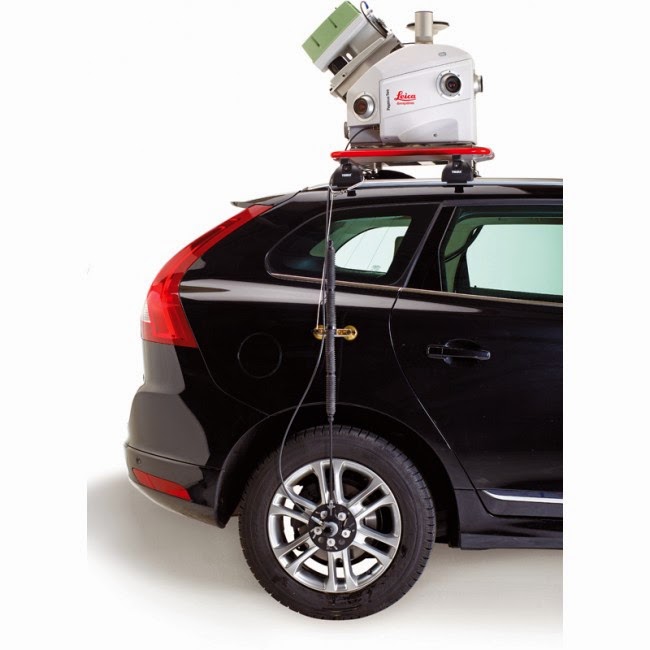

Wheel sensor

1,000 pulses per rotation, IP67, integrated time stamping of the wheel sensor data (handled by GNSS controller). Processing of the wheel sensor data is integrated with the Kalman filtering based trajectory computational software. A variety of wheel sizes supported.

Rotational platform

Optional rotational platform is available to provide an alternative scanner or profiler position while maintaining the camera geometry.



Sensor Platform

Weight                                         51kg (without case), 86kg (with case)
Size                                              60 x 76 x 68cm, profiler version
                                                     60 x 79 x 76cm, Leica ScanStation P20
Size with case                              68 x 68 x 65cm

Battery

Weight            34.8kg
Size                 65 x 32 x 37cm

Environmental

Operating temperature         0°C to +40°C, non-condensing
IP protection level                IP52, excluding the scanner. Please refer to scanner documentation.
Storage temperature             –20°C to +50°C, non-condensing

Typical Accuracy*

Hortizontal accuracy                0.020m RMS
Vertical accuracy                     0.015m RMS
Conditions                               Without control points, open sky conditions

Productivity*

Data produced per project (compressed)                                           43 GB/h or 1.1 GB/km
Data produced after post processing (images and point cloud)         60 GB/h or 1.5 GB/km
Post processing time                                                                  1 hr of data collection equals 1 hr                                                                                                             post-processing without colourising, 1                                                                                                    hr of data collection equals 5 hrs of post-                                                                                                  processing with colourising.

Export Options
Images             JPEG and ASCII for photogrammetric parameters
Point cloud      Binary LAS 1.2. X,Y,Z, intensity, RGB values. Colourisation by camera pictures.                                 Hexagon Point Format.

Accuracy Test Conditions*

Scanner frequency                    1,000,000 points per second
Image distance                          3m
Driving speed                           40km/h
System configuration                No wheel sensor, no dual antenna
Laser scanner                            ZF 9012
Max baseline length                  3.2km

Repeatability*

Based on open sky, GPS+GLONASS processing, and phase differential. Points were measured manually from within the point cloud. A ring with 26 check points were collected 4 times, for a total of 104 observations. Check points were measured with TPS and levelling.

Resulting mean error for X,Y,Z was -0.004,-0.004,0.001 meters, and the resulting standard deviation for X,Y,Z was 0.011,0.012,0.008 meters.

* If not specified, datasheet is refers to a Leica Pegasus:Two with a ZF9012 profiler and an iMAR FSAS IMU. Datasheet is subject to change without notice.
